  1. 홈 > 제품 > Rugged Tablet > ST13 시리즈

ST13-R2A

  • In Stock: 99999
  • Category: ST13 시리즈
$0 $0

Android 12를 실행하는 업계 수준의 견고한 태블릿: Rockchip 옥타 코어 프로세서로 구동되며, 배터리 수명이 길고 효율적인 4G/5G/WiFi 6 연결이 특징입니다. IP65 보호 및 낙하 방지 설계는 복잡한 시나리오, 내장 냉각 팬 및 대용량 스토리지, 맞춤형 모듈 지원에 적응하여 물류, 산업 및 기타 분야의 전문 운영을 위한 핵심 도구입니다.

Buy Now Add to shopping cart
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

제품 개요

ST13-R2A는 13.3인치 내구성 강화형 태블릿으로, 록키칩(Rockchip) RK3588 팔코어 프로세서(4×[email protected] + 4×[email protected])를 탑재하고 안드로이드 12 운영체제를 실행합니다. 유연한 저장 공간 구성(8GB/256GB 또는 16GB/256GB, 8GB/512GB、16GB/512GB 옵션 제공)、13.3인치 1080×1920 해상도 IPS 디스플레이、5메가픽셀 전면/13메가픽셀 후면 카메라、8000mAh 7.6V 배터리(6000mAh 옵션 제공)를 탑재하며 SLM770A 모듈을 통한 4G LTE 통신、WiFi 6 및 블루투스 5.0을 지원합니다. HDMI、이중 USB(2.0+3.0)、기가비트 RJ45 인터페이스를 구비하고 IP65 방진·방수 등급、1.2미터 낙하 방지 성능을 가지고 있어 대형 화면 시각화 및 다기능 인터페이스가 필요한 고성능 안드로이드 산업용 애플리케이션에 특화된 설계입니다.

핵심 특징

  • 안드로이드 12 운영체제，록키칩(Rockchip) RK3588 팔코어 프로세서(4×[email protected] + 4×[email protected]) 탑재
  • ARM Mali G610 그래픽 처리장치，유연한 저장 공간 옵션(8GB/256GB、16GB/256GB、8GB/512GB、16GB/512GB)
  • 13.3인치 1080×1920 해상도 IPS 디스플레이，10점 터치，스타일러스 및 젖은 손 터치 지원
  • 8000mAh 7.6V 배터리(6000mAh 옵션 제공)，SLM770A 모듈을 통한 4G LTE 통신 지원
  • WiFi 6(802.11ax)、블루투스 5.0、다중 프로토콜 NFC(ISO/IEC 14443A/B；ISO/IEC 15693) 지원
  • 풍부한 인터페이스 구성：HDMI、USB-A 2.0+3.0、Type-C、기가비트 RJ45、이중 항공 인터페이스
  • IP65 방진·방수 등급，1.2미터 낙하 방지 성능，8합1 센서套件로 산업 환경 적응력 강화
  • 13.3인치 대형 화면 설계(크기 331.7×203.2×19.5mm)，산업 작업 흐름 효율성 향상

기술 사양 (ST13-R2A 모델)

운영체제 안드로이드 12
프로세서 록키칩(Rockchip) RK3588 (팔코어；2.4GHz)
Cortex-A76×4 @2.4GHz，Cortex-A55×4 @1.8GHz
그래픽 처리장치(GPU) ARM Mali G610
RAM/ROM 8GB/256GB，16GB/256GB
옵션：8GB/512GB，16GB/512GB
LCD 디스플레이 13.3인치；1080×1920 해상도；IPS 스크린
터치 스크린 10점 터치
스타일러스 지원；젖은 손 터치 지원
카메라 전면：5메가픽셀；후면：13메가픽셀
전원 및 배터리 8000mAh / 7.6Vdc (60.80와트시)
6000mAh 옵션 제공
WWAN FDD_LTE：B1/B2/B3/B4/B5/B7/B8/B28/B66 대역
TDD_LTE：B40 대역
WCDMA：B1/B2/B4/B5/B8 대역
GSM/EDGE：B2/B3/B5/B8 대역
모듈：SLM770A
GPS 북두(BDS)、GPS、글로나스(GLONASS)
WIFI 802.11a/b/g/n/ac/ax 무선 인터넷；무선 AP(모바일 AP) 지원；2.4G、5G 듀얼 밴드
WiFi 6 지원
WiFi/블루투스 2인 1체 모듈
블루투스(BLUETOOTH) 5.0 버전
NFC 13.56MHz，거리：1-3cm；ISO/IEC 14443A/B；ISO/IEC 15693 표준 지원
마이크(MIC) 감도：-32±2dB；출력 임피던스：2.2kΩ×1
스피커(SPEAKER) 8Ω 0.8와트 ×2
센서(Sensor) 광 센서、지자기 센서、압력 센서、중력 센서、근접 센서、가속도 센서、자이로스코프、진동 모터
크기(Size) 331.7×203.2×19.5mm
무게(Weight) 1450±50그램(참고용)
언어(Language) 다국어 지원

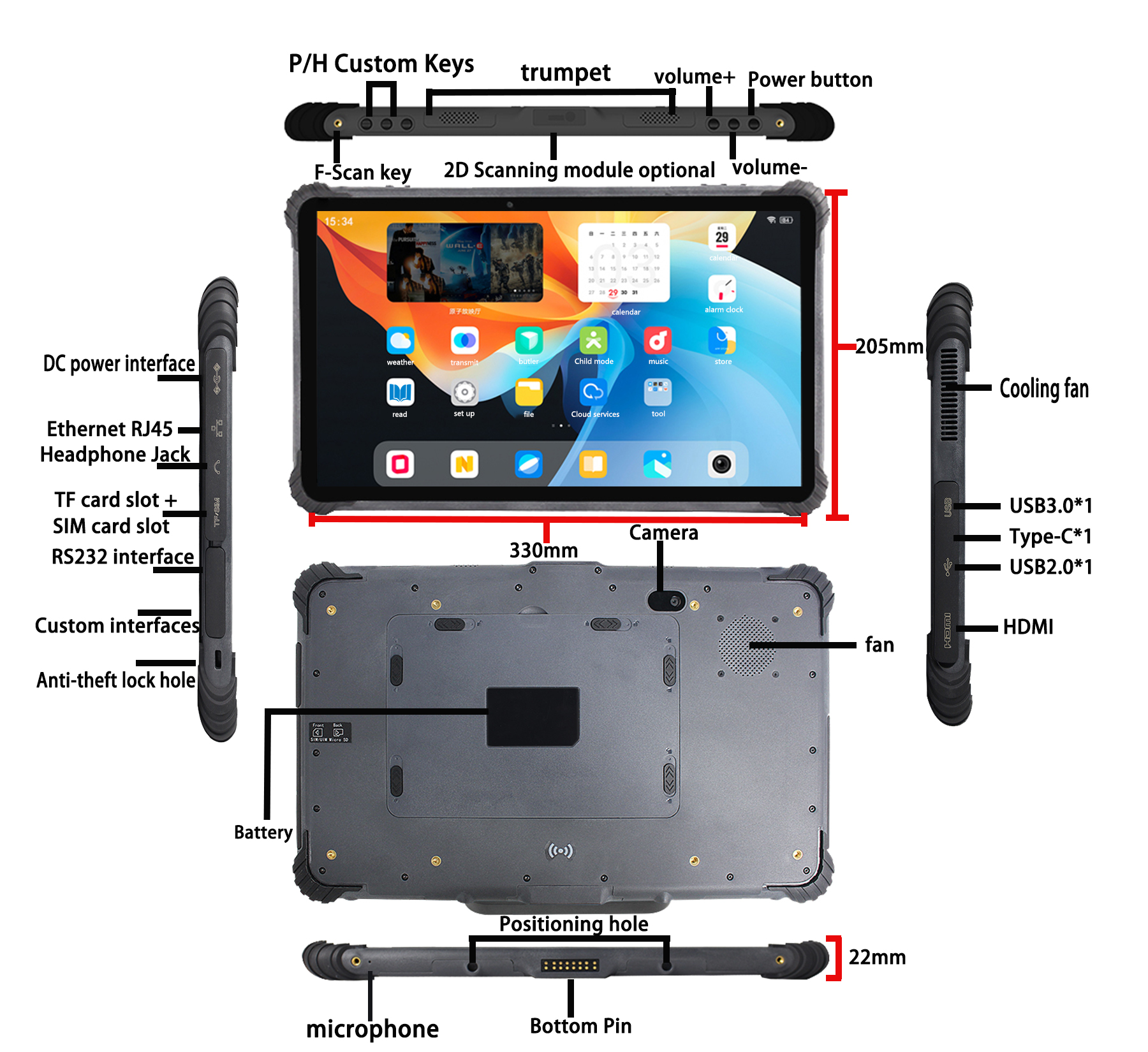

입/출력 포트(Interface In/Out Port) HDMI Type A 포트×1；USB-A 포트(USB 2.0×1+USB 3.0×1)；Type-C 포트×1；도난 방지 잠금 홀；항공 인터페이스×2(커스터마이즈 및 RS232，TX/RX/GND만 지원)；카드 슬롯(SIM+TF)；이어폰 잭(∮3.5mm)；기가비트 이더넷 RJ45(10/100/1000M)；DC 전원 포트(∮4.0mm)
하단 pogopin 포트：USB 2.0；충전；RS232
버튼(Button) 볼륨 업/다운 버튼、전원 버튼、"F" 버튼(바코드 스캔 기능)
커스텀 버튼：P 버튼、H 버튼(기본 기능 없음)
1D/2D 바코드 옵션：허니웰(Honeywell) N4680
액세서리(Accessories) 파란색 박스；DC 충전기(12V 4A)；캐리 스트랩；리스트 스트랩；나사 및 드라이버
옵션：도킹 스테이션；홀더 STA131；카 홀더 STA03
멀티미디어(하드웨어 디코딩) 사진 뷰어：BMP、JPG、GIF、PNG
비디오 포맷：MEPG 1/2/4、H.263/H.264、RMVB、WMV/VC-1、MVC、AVS、MJPEG(최대 1080P 지원)
오디오 포맷：MP3、WMA、WAV、OGG、FLAC、ALAC、APE、AAC、AC-3、DTS(라이센스 필요)
방호 등급(Proof Degree) IP65 방진·방수，1.2미터 낙하 방지
인증(Certification) CE、FCC、3C
온도 범위(Temperature) 저장 온도：-40℃ ~ 60℃；운영 온도：-20℃ ~ 55℃

적용 시나리오

⚡
고성능 안드로이드 산업용
?
대형 화면 데이터 시각화
?
다중 인터페이스 산업 제어
?
산업 IoT 및 자동화
