  1. 홈 > 제품 > Rugged Tablet > ST11 시리즈

ST11-U

  • In Stock: 99999
  • Category: ST11 시리즈
$0 $0

Windows 에코시스템 플래그십 견고한 태블릿: Win11 + Intel 데카 코어 파워는 프로 소프트웨어를 원활하게 실행합니다. 10.1인치 HD 화면은 훌륭한 비주얼을 제공하며 긴 배터리는 하루 종일 지속됩니다. 4G/WiFi는 빠르게 연결됩니다. IP54 보호 + 낙하 저항은 어려운 장면에 적합합니다. 내부 냉각 팬은 안정성을 높이고 사용자 지정이

Buy Now Add to shopping cart
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

제품 개요

ST11-U는 Intel 12세대 Core 프로세서(I5-1235U/I7-1255U 옵션)를 탑재한 10.1인치 견고형 태블릿으로, TPM2.0을 지원하는 Windows 11 Pro 운영체제를 실행합니다. 최대 64GB LPDDR5 RAM과 512GB M.2 저장 공간, 1200×1920 해상도의 10.1인치 디스플레이(밝기 450니트), 5MP/8MP 카메라, Type-C 65W 고속 충전이 가능한 6000mAh 7.6V 배터리, 4G LTE 통신 모듈(SLM770A), WiFi 6 AX201, Bluetooth 5.2, NFC를 탑재했습니다. IP54 방진 방수 등급, 1.2m 낙하 내성에 더해 UHF RFID/지문 인식/고정밀 GPS를 옵션으로 제공하며, Windows 기반 산업용 및 기업용 애플리케이션에 특화되어 설계되었습니다.

핵심 특징

  • TPM2.0 지원 Windows 11 Pro 탑재, Intel 12세대 Core I5-1235U/I7-1255U 프로세서(10코어/12스레드)
  • Intel Iris Xe 그래픽(80EU/96EU), 최대 64GB LPDDR5 RAM, 최대 512GB M.2 SATA 저장 공간
  • 10.1인치 1200×1920 디스플레이(450니트), 10점 터치 지원, 스타일러스 펜 및 물에 젖은 손 조작 지원
  • 6000mAh 7.6V 배터리(45.6Wh), 2.5시간 고속 충전, 동영상 재생 시간 5.5시간, 대기 시간 6일
  • 멀티밴드 4G LTE 통신(SLM770A 모듈), WiFi 6 AX201, Bluetooth 5.2, 13.56MHz NFC 지원
  • 풍부한 인터페이스: HDMI, USB3.2 Gen1×2, Type-C(PD 전원 공급/영상 출력/데이터 전송/충전), 기가비트 RJ45, RS232
  • IP54 방진 방수, 1.2m 낙하 내성, MIL-STD-810G 인증, UHF RFID/지문 인식/UM960 GPS 옵션 지원
  • TPM2.0 기반 기업급 보안, 비즈니스 애플리케이션에 최적화된 Intel vPro 지원 성능

기술 사양 (ST11-U)

운영체제 Windows 11 Pro
CPU Intel I5-1235U(10코어, 12스레드; 1.3GHz/4.4GHz, 15W)
Intel I7-1255U(옵션)(10코어, 12스레드; 1.7GHz/4.7GHz, 15W)
GPU Intel® Iris® Xe Graphics 80EU
I7 모델: Intel® Iris® Xe Graphics 96EU
TPM TPM2.0 지원
메모리/저장 공간 I5 모델: 메모리 8GB/16GB(최대 64GB); 저장 공간 128GB/256GB/512GB
I7 모델: 메모리 16GB/32GB(최대 64GB); 저장 공간 128GB/256GB/512GB
메모리: LPDDR5 496 Ball; 저장 공간: M.2 2242 SATA(C500)
디스플레이 10.1인치; 1200×1920; 450니트
터치스크린 10점 터치 지원
스타일러스 펜 지원; 물에 젖은 손 조작 지원
카메라 전면: 5MP; 후면: 8MP
전원 6000mAh 7.6V 리튬 배터리(45.6Wh)
충전 시간: 2.5시간; 사용 시간: 5.5시간(볼륨 50%, 밝기 60%, 로컬 1080P 동영상 재생 시); 대기 시간: 약 6일
DC4.0 12V 입력; Type-C 65W 고속 충전 지원
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD_LTE: B40; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
모듈: SLM770A(북미 지역은 EC25-AUX)
GPS BDS, GPS, GLONASS 지원
WIFI 802.11a/b/g/n/ac/ax 지원; 무선 AP(모바일 AP) 기능; 2.4G, 5G 듀얼 밴드
Intel® Wi-Fi 6 AX201(WiFi/Bluetooth 2in1)
BLUETOOTH 버전 5.2
NFC 13.56MHz, 통신 거리: 1-3cm; ISO14443 TYPE A 지원
마이크 감도: -32±2d; 출력 임피던스: 2.2kΩ×1
스피커 8Ω 1.5와트
센서 조도 센서, 가속도 센서, G 센서
크기 268.9×176.8×18mm
무게 1190±50g
언어 멀티 언어 지원

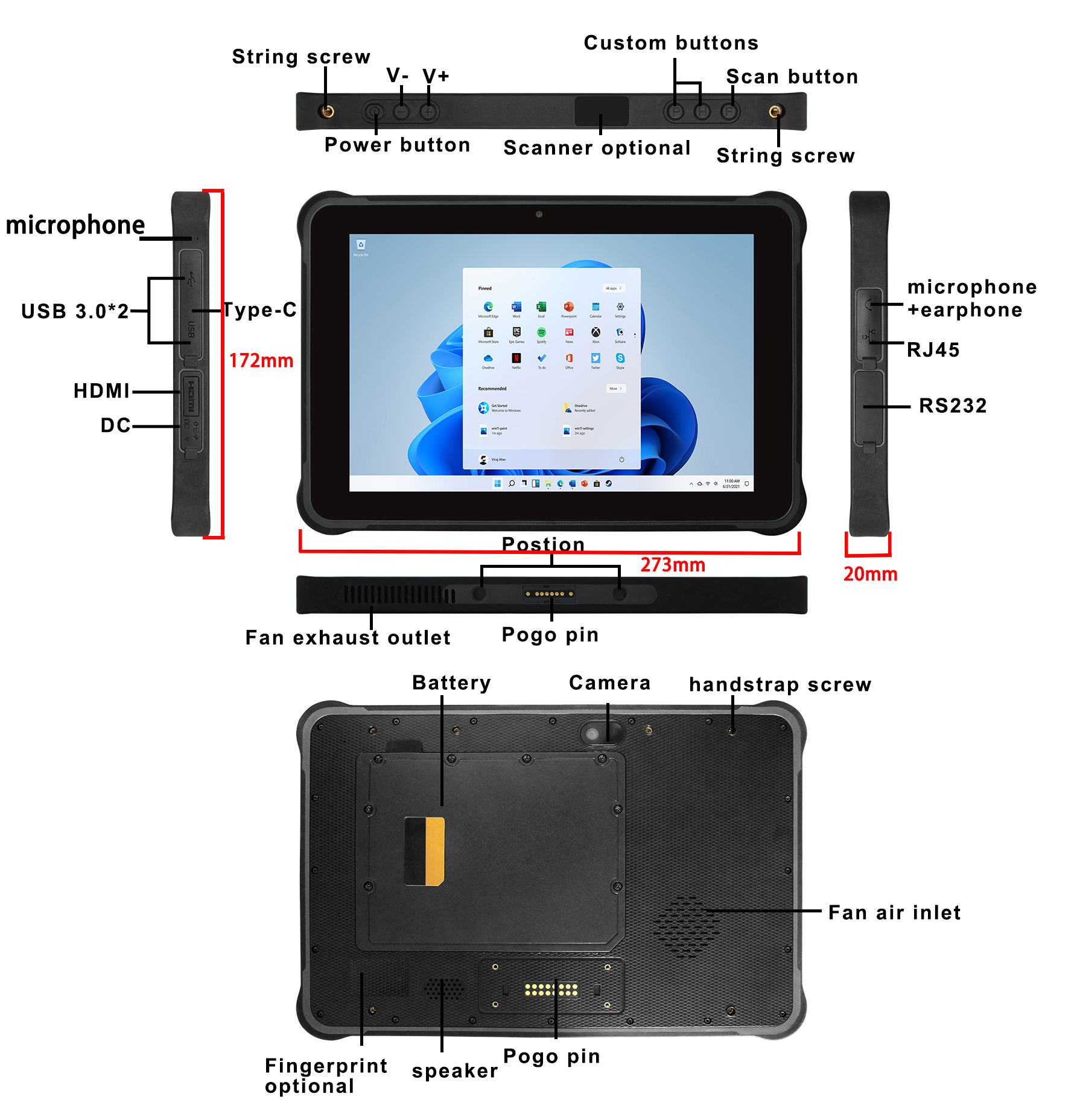

입출력 인터페이스 DC×1(4.0×15mm); HDMI Type A×1; USB Type-A: USB3.2 Gen1×2; USB Type-C: USB3.2 Gen1×1(PD/DP/데이터/충전); 이어폰 잭: ∮3.5mm×1; 기가비트 RJ45; RS232(DB9)

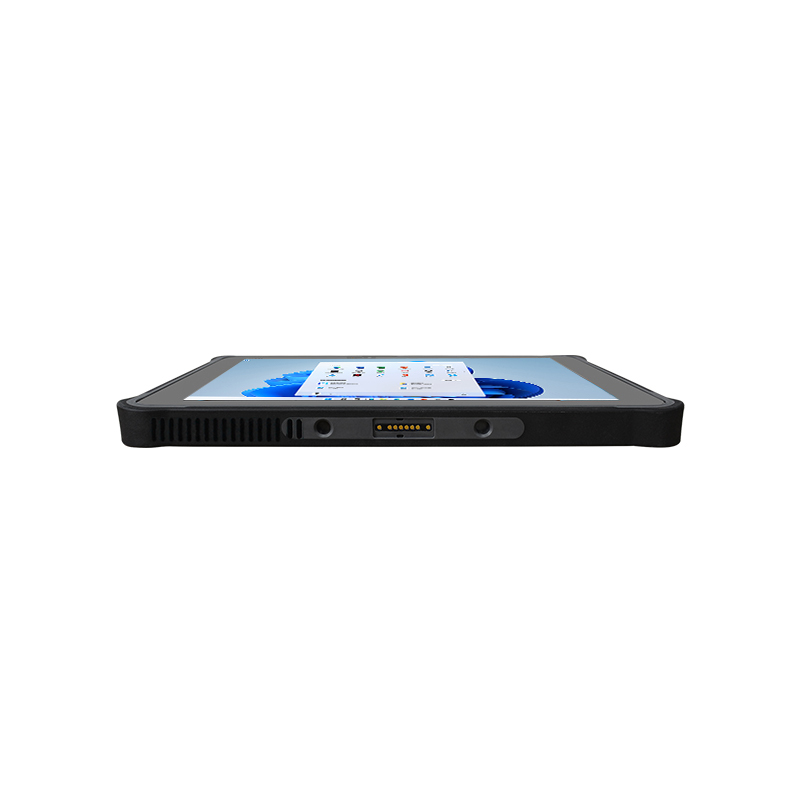

하단 포고핀: USB 2.0; 충전; RS232
후면 포고핀: USB 2.0; RS232
버튼 볼륨±, 전원, 바코드 스캔용 「F」버튼
사용자 정의 버튼: P, H(기본 기능 없음)
1D/2D 바코드 스캐너 옵션: Honeywell N4680
UHF RFID M-500(옵션)
미국 표준 M-500(902MHz – 928MHz): 외부 안테나(3-5m)
유럽 표준 M-500(865MHz – 868MHz): 외부 안테나(3-5m)
M-301(옵션)
미국 표준 M-301(902MHz – 928MHz): 외부 안테나(5-8m)
유럽 표준 M-301(865MHz – 868MHz): 외부 안테나(5-8m)
지문 인식 옵션: AFM60
고정밀 GPS 옵션: UM960
액세서리 블루 박스; DC 충전기(12V 4A); 캐리 스트랩; 나사; 손목 스트랩; 드라이버
옵션: 도킹 스테이션; 차량용 홀더 STA15; 차량용 홀더 STA03
멀티미디어(하드웨어 디코딩) 사진 뷰어: BMP, JPG, GIF, PNG
동영상 포맷: MPEG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG(최대 1080P)
오디오 포맷: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS(라이센스 필요)
보호 등급 IP54 방진 방수, 1.2m 낙하 내성
인증 MIL-STD-810G; CE, FCC, 3C
동작 온도 보관 온도: -40℃ ~ 60℃; 동작 온도: -20℃ ~ 55℃

적용 시나리오

?️
Windows 기업용 애플리케이션
?
TPM2.0 보안 환경
?
고정밀 GPS 매핑
?
기업 산업용 워크플로우
