  1. 홈 > 제품 > Rugged Tablet > ST11 시리즈

ST11-R

  • In Stock: 99999
  • Category: ST11 시리즈
$0 $0

명확한 디스플레이와 부드러운 통신을 갖춘 Android 시스템과 강력한 프로세서가 장착된 물류, 화학 및 기타 시나리오에 맞게 조정되었습니다. 오래 지속되는 배터리 수명, 혹독한 환경에 대한 IP65 보호 및 기능 확장을 지원하여 다양한 산업의 내구성이 뛰어난 스마트 작업 동반자가 되었습니다.

Buy Now Add to shopping cart
Share:
  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch

제품 개요

ST11-R은 Rockchip RK3399 헥사코어 프로세서(2×[email protected] + 4×[email protected])를 탑재하고 Android 10.0 시스템을 구동하는 10.1인치 내구성 태블릿입니다. 4GB/64GB 저장 공간, 10.1인치 1200×1920 IPS 디스플레이(450니트), 500만 화소 전면/1300만 화소 후면 카메라(플래시 포함), 듀얼 배터리 설계(메인 12000mAh + 보조 2400mAh), 4G 멀티밴드 연결, WiFi 802.11a/b/g/n/ac, 블루투스 5.0 및 NFC를 갖추고 있습니다. IP65 방진/방수 등급, 1.2미터 낙하 저항성 및 MIL-STD-810G 인증을 획득하여 핵심 산업용 애플리케이션에 신뢰할 수 있는 성능을 발휘합니다.

핵심 특징

  • Android 10.0 시스템, Rockchip RK3399 헥사코어 프로세서(2×[email protected] + 4×[email protected])
  • Mali-T860 GPU, 10.1인치 1200×1920 IPS 디스플레이(450니트), 스타일러스 및 습수 조작 지원 10점 터치
  • 4GB/64GB 저장 공간, 장시간 작동을 위한 듀얼 배터리 설계(12000mAh+2400mAh)
  • 500만 화소 전면 + 1300만 화소 후면 카메라(플래시 포함), 자이로스코프 및 압력 센서를 포함한 완전한 센서 세트
  • 4G 멀티밴드 연결(TDD/FDD LTE, WCDMA, TD-SCDMA, GSM), WiFi 802.11a/b/g/n/ac 및 블루투스 5.0
  • 풍부한 인터페이스: HDMI, USB 3.0, USB 2.0, RJ45, RS232, Micro USB, 듀얼 포고핀 커넥터
  • IP65 방진/방수, 1.2미터 낙하 저항성, MIL-STD-810G 인증, 선택 사양 바코드 스캐너
  • 컴팩트 디자인(268.9×176.8×18mm), 경량(1120±20g)으로 현장 배치가 용이

기술 사양 (ST11-R)

운영체제 Android 10.0
CPU Rockchip RK3399 (헥사코어; 1.8GHz)
Cortex-A53×4 @1.4GHz, Cortex-A72×2 @1.8GHz
GPU Mali-T860
RAM/ROM 4GB/64GB
디스플레이 10.1인치; 1200×1920; 450니트; IPS 스크린
터치 스크린 10점 터치
스타일러스 지원; 습수 터치 지원
카메라 전면: 500만 화소; 후면: 1300만 화소 (플래시 포함)
전원 및 배터리 메인 배터리: 12000mAh / 3.8Vdc (45.6Wh)
보조 배터리: 2400mAh
무선 광역망 4G LTE, 3G WCDMA, GSM
4G 주파수: TDD_LTE: B38/B39/B40/B41/B44; FDD_LTE: B1/B2/B3/B5/B7/B8/B12/B20
WCDMA: B1/B8; TD-SCDMA: B34/B39; GSM/GPRS/EDGE
위치 서비스 BDS, GPS, GLONASS
WiFi 802.11a/b/g/n/ac 무선 인터넷; 무선 AP (모바일 AP); 2.4G, 5G
블루투스 5.0 버전
NFC 13.56 MHz, 통신 거리: 1-3cm; ISO14443 TYPE A
마이크 감도: -32±2d; 출력 임피던스: 2.2kΩx1
스피커 8Ω 1.5 와트
센서 광 센서, 자기 센서, 압력 센서, 중력 센서, 거리 센서, 가속도 센서, 자이로스코프, 모터
크기 268.9×176.8×18mm
무게 1120±20g
언어 다국어 지원

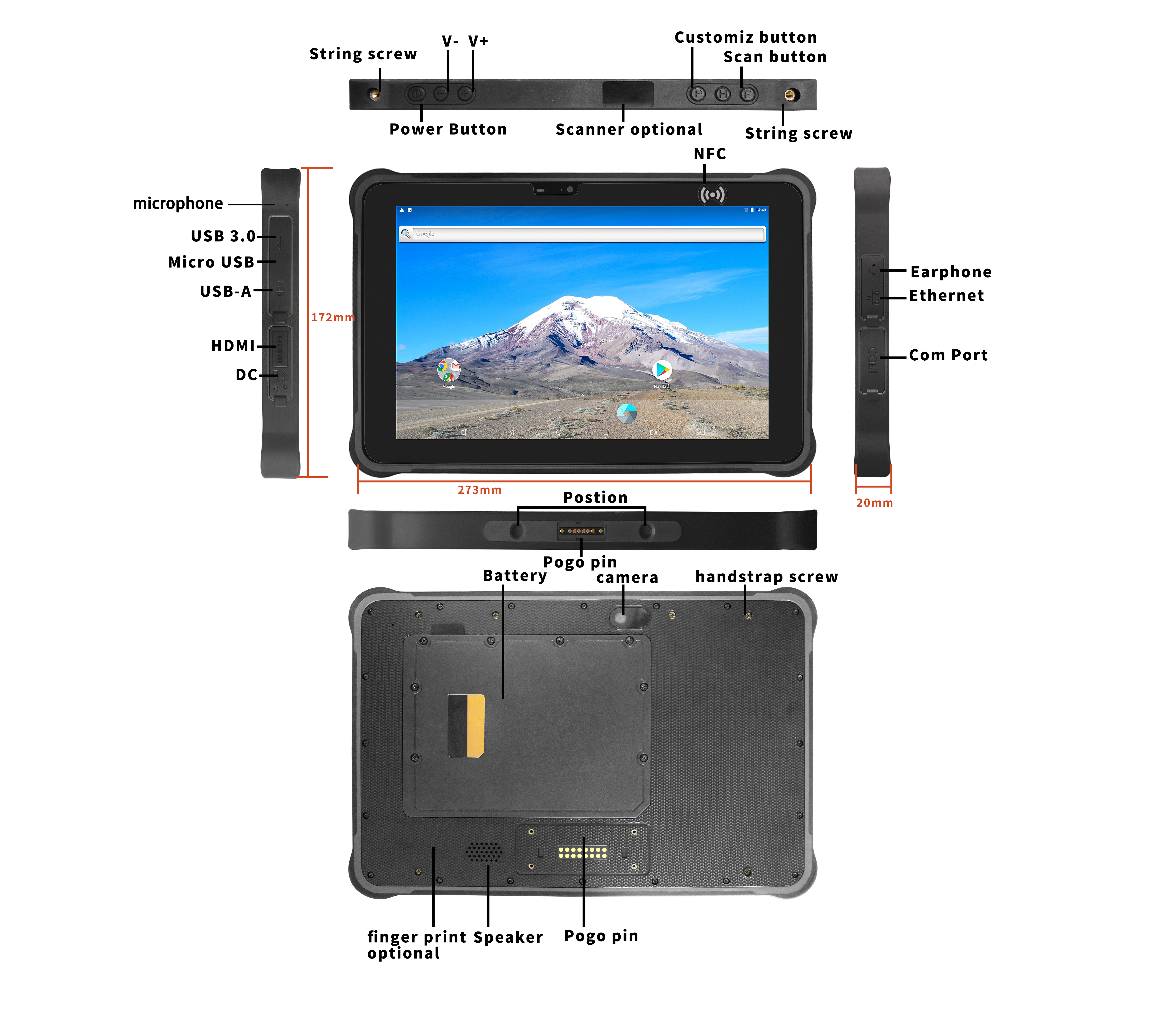

입출력 포트 Micro USB ×1; SIM 카드 슬롯×1; TF 카드 슬롯×1; 이어폰×1; DC×1 (3.5×12mm); USB 2.0 ×1; RJ45×1; RS232×1; USB 3.0 ×1; HDMI×1
하단 포고핀: USB 2.0; 충전; RS232
후면 포고핀: USB 2.0; RS232
버튼 볼륨 조절, 전원, 바코드 스캔용 "F" 버튼
사용자 정의 버튼: P, H (기본 기능 없음)
1D/2D 바코드 선택 사양: Honeywell N4680
액세서리 블루 박스; DC 충전기 (5V 3A); 캐리 스트랩; 나사; 손목 스트랩; 드라이버
선택 사양: 도킹 스테이션; 차량용 홀더 STA15; 차량용 홀더 STA03; 마그네틱 키보드
멀티미디어 (하드웨어 디코딩) 사진 뷰어: BMP, JPG, GIF, PNG
비디오 형식: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (최대 1080P)
오디오 형식: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (라이센스 필요)
보호 등급 IP65 방진/방수, 1.2미터 낙하 저항성
인증 MIL-STD-810G; CE, FCC, 3C
작동 온도 저장 온도: -40°C ~ 60°C; 작동 온도: -20°C ~ 55°C

적용 분야

?
기본 산업 작업
?
장시간 현장 작업
?
물류 및 창고 관리
?
다중 네트워크 커버리지 지역
